Precision in Every Detail

Expert Steel Detailing & BIM Modeling

From Concept to Fabrication

What We Do

3D Tekla Structural Modeling

We deliver highly accurate, clash-free 3D BIM models for complex steel structures. Our Tekla models ensure precision from concept to final fabrication, reducing on-site errors.

d1

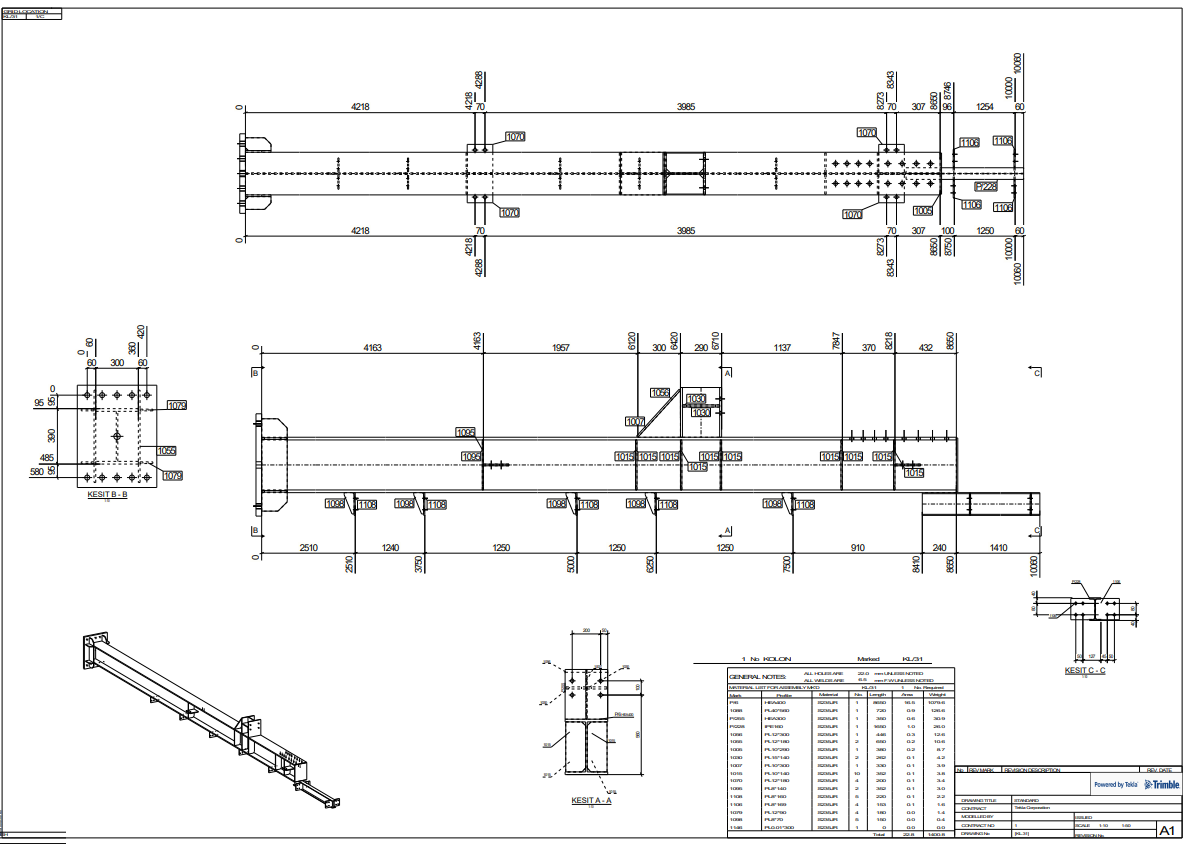

FABRICATION & SHOP DRAWINGS

We provide detailed, clear, and easy-to-read shop and erection drawings. All drawings are generated directly from the 3D model, ensuring 100% accuracy for seamless fabrication.

CNC Data & Material Reports

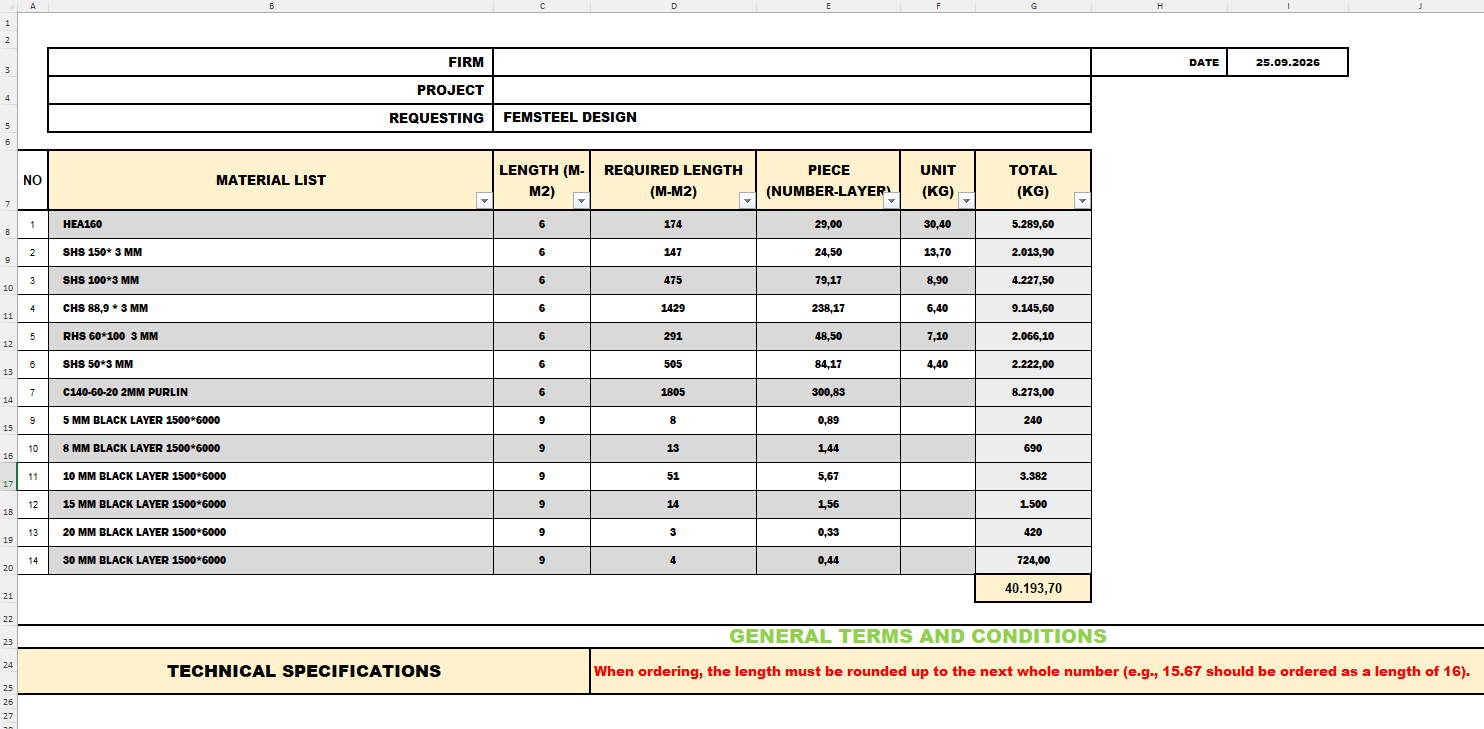

To streamline production, we export complete NC/NC1 files for automated machines. We also generate precise BOMs and bolt lists to help you control costs and purchasing.

OUR PROCESS

  • REVIEW INPUTS
  • 3D MODELING
  • CLASH CHECK & RFI
  • FINAL DELIVERABLES
We carefully analyze your architectural and structural drawings. In this phase, we verify compliance with the required standards (Eurocode, BS, etc.) and precisely set up the Tekla Structures environment tailored to your specific workshop preferences.
Our detailing team builds a highly precise 3D BIM model of your structure. Every single element—including plates, bolts, welds, and complex connections—is modeled exactly as it will be fabricated and erected on-site.
Before generating any drawings, we run rigorous internal clash detection within the model. If we identify any discrepancies or missing data in the original engineering inputs, we promptly issue clear RFIs (Requests for Information) to resolve issues before fabrication begins.
Once the model is approved, we extract the final deliverables. You receive clear, fabrication-ready shop drawings, comprehensive erection plans, exact Bill of Materials (BOM), and NC1 data ready for your CNC machines.
View All Projects

WHY PARTNER WITH US?

By outsourcing your steel detailing to us, you significantly reduce your overhead costs without compromising on quality. We adapt to your time zones and deliver clash-free models faster, keeping your fabrication schedule on track.-

COST-EFFECTIVE

We don't just draw lines; we build virtual structures. Every NC file, BOM, and shop drawing is meticulously checked against your workshop's specific CNC and fabrication requirements, ensuring a seamless transition from 3D model to actual machine.

100% FABRICATION-READY

Our engineering team is fully proficient in European standards (Eurocode) and strictly operates on the metric system. You won't face any conversion errors or standard compliance issues; we speak your technical language perfectly.

EUROCODE EXPERTS

We believe that good detailing requires excellent communication. We raise timely RFIs for any missing data and maintain transparent, fast-response channels throughout the project lifecycle to prevent costly delays on site.

CLEAR COMMUNICATION
